Bitmain Antminer APW3++ PSU 1600W D3 S9 S7 L3 B3 X3 T9 Full Working Order

Bitmain Antminer APW3++ PSU 1600W D3 S9 S7 L3 B3 X3 T9 Full Working Order

antminer
adminLeave a Comment on Bitmain Antminer APW3++ PSU 1600W D3 S9 S7 L3 B3 X3 T9 Full Working Order
item image

Price: 90.00 USD

Crypto Miner:

Bitmain Antminer APW3++ PSU 1600W D3 S9 S7 L3 B3 X3 T9 Full Working Order



eBay

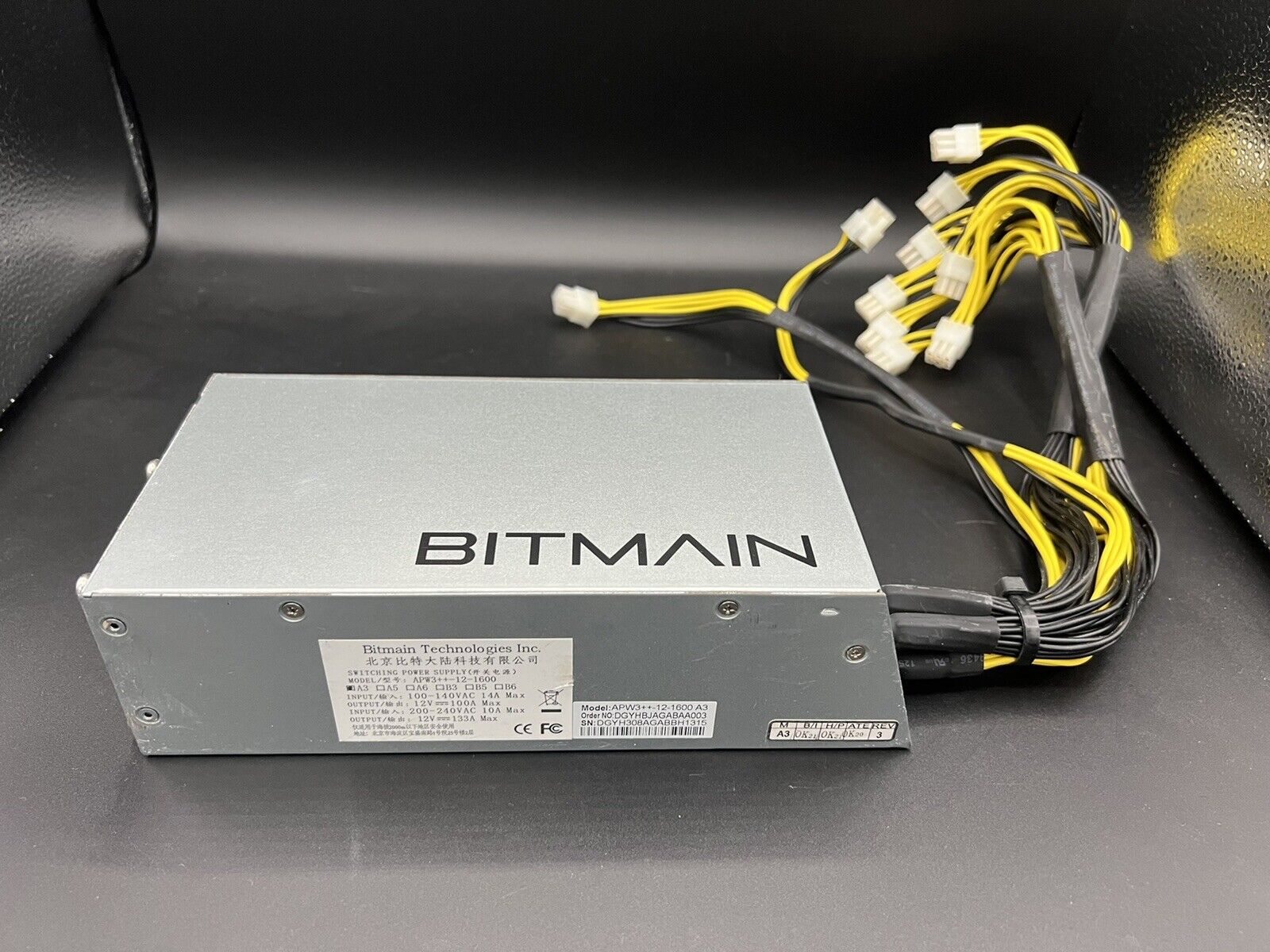

This Listing is for Used Bitmain Antminer APW3++ PSU 1600W D3 S9 S7 L3 B3 X3 T9
                                      Full Working Order

1. The power cord is not included,

2. The APW3++ can deliver a maximum power of only 1200W if it is connected to a 110V mains power supply. To obtain the rated power of 1600W, the APW3++ must be connected to a 220-240V mains power supply.


Output

  • DC Voltage: 12.15V
  • Rated Current(220V input): 133A
  • Rated Current(110V input): 100A
  • Rated Power(220V input): 1600W
  • Rated Power(110V input): 1200W
  • Ripple & Noise: <1%
  • Voltage Regulation: <2%
  • Load Regulation: <1%
  • Source Regulation: <1%
  • Setup, Rise Time: <2S
  • Power off Protection Trip Time:>9mS
  • Interface Type: 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
  • Noise Level: <43DB


Input

  • Voltage Range:100-240V AC
  • Starting Voltage: 95-105V AC
  • Frequency Range: 47-63Hz
  • Power Factor: >0.95 (full load)
  • Leakage Current: <1.5mA (220V 50Hz)

Protection

  • Low-voltage Input：80-89V AC
  • Output Short Circuit：Yes
  • Output Overcurrent：134-185A max.
  • Overheat Protection：Yes
  • Operating Temperature：-20°C – 50°C
  • Operating Humidity：20% – 90% relative humidity (non-condensing)
  • Dimensions：220mm*108mm*62mm
  • Cooling：Forced-air cooling

Package Included:
1 x Used Bitmain Antminer APW3++ PSU 1600W (please view photos provided)
